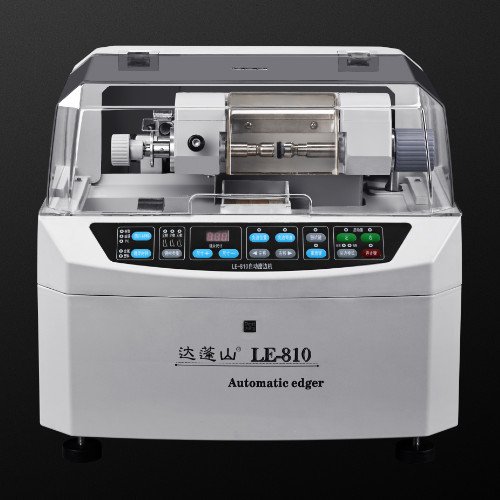

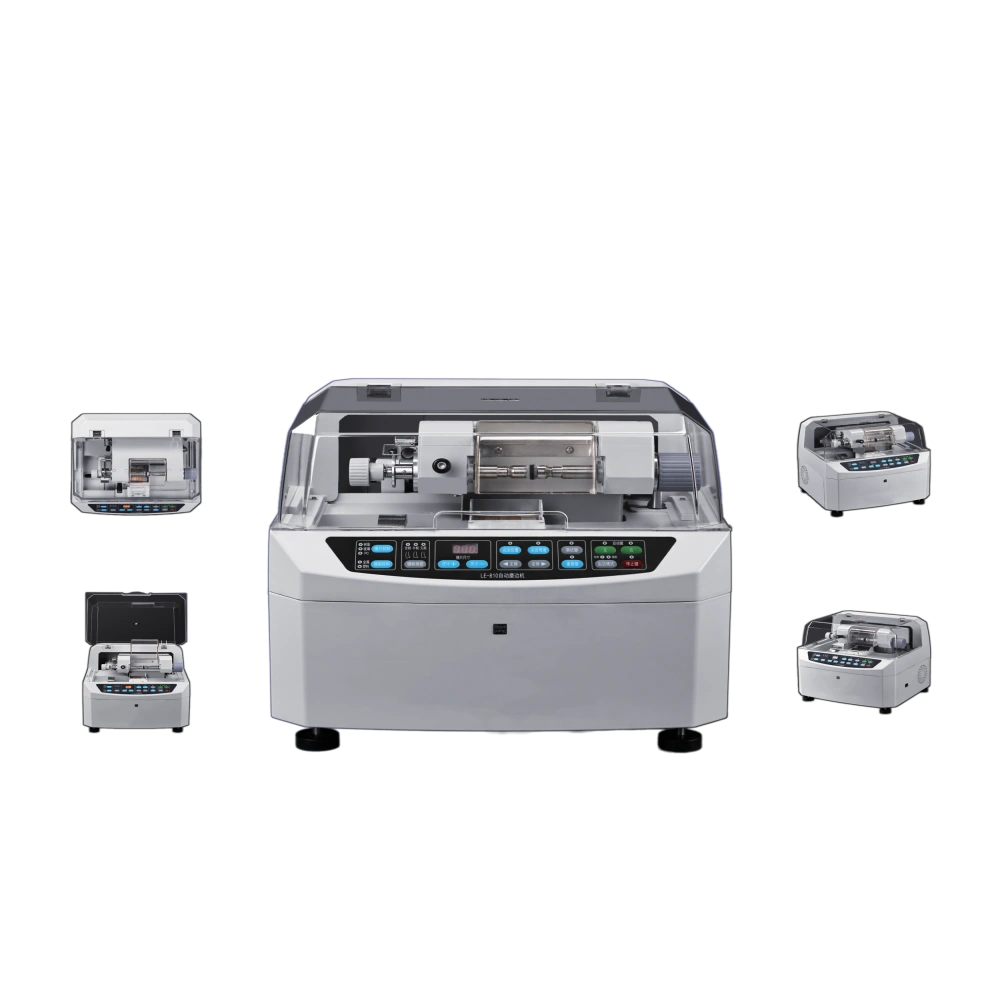

Semi-auto Edger LE-810
A precision semi-auto lens edger with 1:1 template system, 0.05 mm edging accuracy, universal anti-skid chuck, and processing range of Φ22–Φ80 mm for optical labs.
Please fill in the details below. We will get back to you within 48 hours.
Description
The Semi-auto Edger LE-810 (BVT-AE810) is a precision lens edging machine for optical labs, capable of processing lenses from Φ22 mm to Φ80 mm in diameter. Supplied by BrightVision Tech, a specialized optical equipment supplier, it uses a 1:1 template system to achieve edging accuracy within 0.05 mm and axial accuracy within half a degree.
The LE-810 features a universal anti-skid chuck that prevents lens slip during edging, even for 1.74-index lenses. Whole frame lenses can be repeatedly edged without undercut. When paired with the CE-600 central locator and FP-900 hole puncher, the system achieves pupil distance accuracy within 0.6 mm and axial positioning within 2°.
Key Features
| Feature | Detail |
|---|---|
| Edging Accuracy | 0.05 mm range with 1:1 template |
| Axial Accuracy | Within half a degree |
| Processing Range | Φ22 mm – Φ80 mm diameter |
| Chuck | Universal anti-skid chuck for 1.74-index lenses |
| Frame Edging | Whole frame lens repeatedly edged without undercut |
| System Compatibility | Works with CE-600 and FP-900 for complete processing |
| Cutting Motor | 3150 rpm |
| Weight | 35 kg |
Diamond Wheel Sizes
| Wheel Type | Size |
|---|---|
| Resin/PC Wheel | 100(D) × 19mm(W) |
| Glass Wheel | 100(D) × 11mm(W) |
| Groove / Flat Wheel | 100(D) × 21mm(W) |
| Polishing Wheel | 100(D) × 14mm(W) |
Applications
- Optical labs — lens edging for prescription frames
- Optical retail chains — in-store lens finishing
- Lens manufacturers — semi-automated batch edging with template system
- Optical equipment distributors — core edging machine for product lines
Specifications
| Parameter | Value |
|---|---|
| Processing Diameter | Φ22 mm – Φ80 mm |
| Cutting Motor Rate | 3150 rpm |
| Size | 445mm(L) × 430mm(W) × 420mm(H) |
| Weight | 35 kg |
| Power | 220V / 50Hz, 550VA |
Frequently Asked Questions
What lens sizes can the LE-810 process?
The LE-810 can process lenses from Φ22 mm to Φ80 mm in diameter, covering most standard prescription lens sizes.
How accurate is the edging?
Using a 1:1 template, the LE-810 achieves edging accuracy within 0.05 mm and axial accuracy within half a degree.
Can it handle high-index lenses (1.74)?
Yes. The universal anti-skid chuck prevents lens slip during edging, even for 1.74-index lenses. Secondary clamping also maintains good axial accuracy.
What wheels are included?
The LE-810 uses four diamond wheels: Resin/PC wheel (100×19mm), Glass wheel (100×11mm), Groove/Flat wheel (100×21mm), and Polishing wheel (100×14mm).
Is OEM customization available?
Yes. We offer OEM customization including your logo, brand colors, and packaging at competitive pricing. Contact our team for details.
