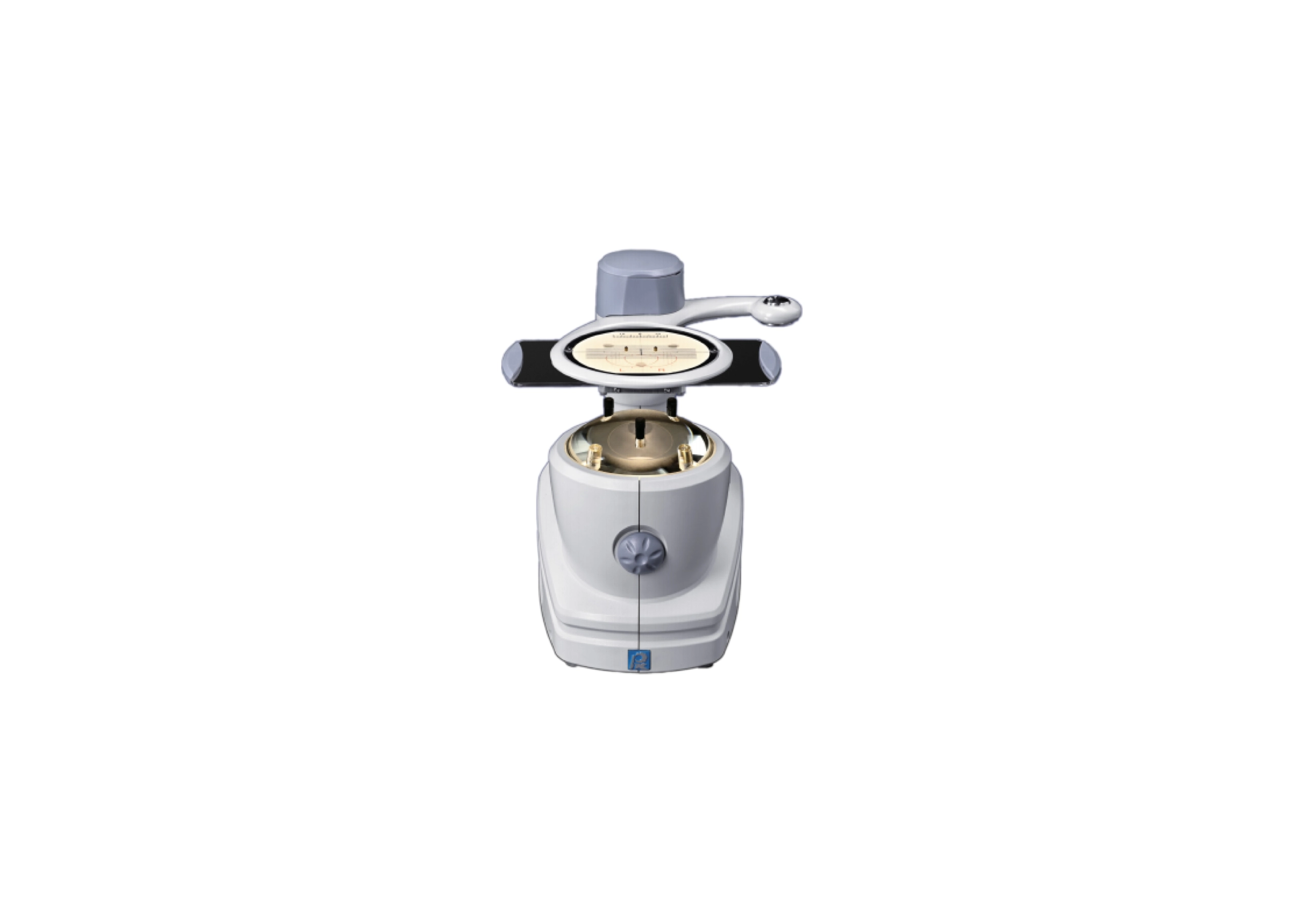

Central Locator CE-600
A precision lens centering instrument with 75 mm screen, ±0.5 mm positioning accuracy, and adjustable LED illumination for accurate lens alignment before edging in optical labs.
Please fill in the details below. We will get back to you within 48 hours.
Description
The Central Locator CE-600 (BVT-LE600) is a precision lens centering instrument for optical labs, featuring a 75 mm diameter screen for high-visibility lens inspection. Supplied by BrightVision Tech, a trusted optical lab equipment supplier, it achieves center positioning accuracy of ±0.5 mm and axis angle accuracy of ±0.5° for precise lens alignment before edging.
The CE-600 uses an LED light source with adjustable brightness, allowing operators to inspect low-transmission lenses such as sunglasses. The LED automatically turns off during the positioning operation to prevent operator glare. Right and left section markings on the screen facilitate locating centers of dual or trifocal lenses.
Key Features
| Feature | Detail |
|---|---|
| Screen | 75 mm diameter for high-visibility inspection |
| Positioning Accuracy | ±0.5 mm position, ±0.5° axis angle |
| Light Source | LED with adjustable brightness |
| Auto-Off | LED extinguishes during positioning to prevent glare |
| Section Markings | Right/left markings for dual and trifocal lenses |
| Compatibility | Works with LE-810 edger and FP-900 hole puncher |
| Bias Range | Vertical ±10 mm, Horizontal ±15 mm |
Applications
- Optical labs — lens centering and marking before edging
- Optical retail stores — precise lens positioning for custom orders
- Lens manufacturers — quality control centering for batch processing
- Optical equipment distributors — essential lab instrument for product lines
Specifications
| Parameter | Value |
|---|---|
| Power | 5V 0.5A |
| Power Rate | 2.5W |
| Motor Rate | 6000 r/min |
| Size | 170mm(L) × 162mm(W) × 212mm(H) |
| Weight | 1.9 kg |
| Vision | Diameter: 75 mm |
| Bias | Vertical: ±10 mm, Horizontal: ±15 mm |
| Positioning Accuracy | Position: ±0.5 mm, Axis angle: ±0.5° |
Frequently Asked Questions
What does the CE-600 do?
The CE-600 is a central locator (trace center) that identifies and marks the optical center and axis of a lens before it is edged to fit a frame. It ensures the lens is positioned correctly for accurate edging.
What is the positioning accuracy?
The CE-600 achieves positioning accuracy of ±0.5 mm for position and ±0.5° for axis angle.
Can it handle sunglass lenses?
Yes. The LED light source is adjustable, making it possible to inspect and center low-transmission lenses such as sunglasses and tinted lenses.
Does it work with other equipment?
Yes. When paired with the LE-810 semi-auto edger and FP-900 hole puncher, the system achieves pupil distance accuracy within 0.6 mm and lens axial positioning within 2°.
Is OEM customization available?
Yes. We offer OEM customization for optical lab instruments. Contact our team for details.
